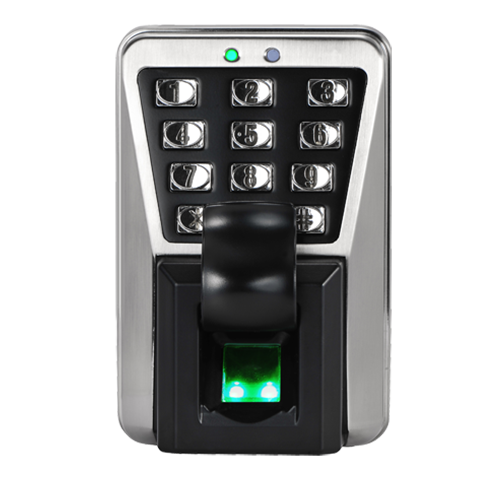

ZKTeco ZK MA500 Biometric Fingerprint Access Control — Secure Access Starts Here

At Phonex Technologies Kenya, we believe that security should never be compromised—whether it’s for corporate premises, government institutions, or sensitive infrastructure. The ZKTeco ZK MA500 Biometric Fingerprint Access Control Terminal offers a robust and scalable solution for any environment requiring reliable, high-performance access control.

Engineered with the latest biometric algorithms and rugged industrial-grade materials, the MA500 is not only designed for accuracy but also built to endure outdoor conditions. In a time when threats to physical and digital assets are growing, a trusted device like the MA500 can mean the difference between secure operations and vulnerability.

Advanced Biometric Performance You Can Rely On

One of the most defining features of the ZKTeco ZK MA500 is its high-accuracy fingerprint authentication system. Powered by a state-of-the-art fingerprint sensor and embedded with an advanced algorithm, it offers unmatched performance in both speed and reliability. The fingerprint recognition is precise—even under conditions where users might have dry, moist, or rough fingers.

This device supports fast 1:N matching of up to 3,000 fingerprints, allowing for smooth user authentication without the long queues often associated with access control systems. What’s more, the MA500 offers seamless compatibility with various access control systems, giving system integrators and IT administrators the freedom to deploy it across a range of applications.

Built for Harsh Environments

Unlike conventional indoor biometric systems, the MA500 is made for the outdoors. Its rugged metal casing is IP65-rated, ensuring protection against dust, water, and other elements. This makes it ideal for installation at outdoor gates, factory entrances, and other exposed locations.

With anti-vandal construction and the ability to operate in extreme temperatures, the MA500 guarantees uninterrupted access control—regardless of environmental conditions. Whether you’re managing high-traffic corporate offices or monitoring access in industrial zones, the ZK MA500 is up to the task.

Seamless Integration and Flexible Communication

Another major advantage of the ZKTeco MA500 is its versatile communication options. The device is equipped with standard TCP/IP and RS485 interfaces, allowing it to be easily connected to a central server or network.

Additionally, it offers Wiegand output that can be used with third-party controllers, and supports relay output for controlling electronic locks, alarms, and exit buttons. For integrators and IT teams, this means simplified deployment across existing infrastructure—without the need for complex rewiring or software overhauls.

The MA500 also supports USB for data transfer and firmware upgrades, making management and maintenance effortless.

Intuitive User Experience and Compact Design

Though engineered with industrial durability, the ZK MA500 does not compromise on aesthetics or usability. It features a compact and modern design that blends well with both industrial and corporate architecture.

The intuitive LED indicators and buzzer provide real-time feedback to users on access permissions. This user-centric design ensures that even first-time users can understand their access status instantly.

Enhanced Security with Multiple Verification Modes

The ZKTeco MA500 offers multiple verification methods to fit different security requirements. You can configure it to use fingerprint only, card only, or a combination of both. The support for 125kHz ID cards enhances versatility, especially in environments where hybrid authentication is preferred.

By offering dual-layer security (fingerprint and card), the MA500 increases resistance to unauthorized access, impersonation, or credential theft.

Where the MA500 Fits In

The MA500 is an ideal solution for a wide range of industries and facilities including:

• Corporate office buildings

• Banks and financial institutions

• Government agencies

• Factories and industrial sites

• Hospitals and clinics

• Educational institutions

• Logistics and warehousing

Whether you’re securing sensitive data centers or regulating staff entry to production zones, the ZKTeco MA500 provides the access control reliability you need.

Technical Specifications (Short Point Form)

• Fingerprint Capacity: 3,000 templates

• Card Capacity: 30,000 cards (125kHz ID card)

• Transaction Logs: 100,000

• Sensor Type: ZK Optical Sensor

• Identification Mode: Fingerprint, Card, or Fingerprint + Card

• Algorithm Version: ZKFinger v10.0

• Verification Speed: ≤ 1 second

• FRR (False Rejection Rate): ≤ 1%

• FAR (False Acceptance Rate): ≤ 0.0001%

• Communication Interfaces: TCP/IP, RS485, USB Host, Wiegand Output

• Relay Output: 1 relay for door lock, exit button, and alarm

• Operating Temperature: -10°C to 50°C

• Operating Humidity: 20% to 80% (non-condensing)

• Ingress Protection: IP65 (waterproof and dustproof)

• Power Supply: DC 12V/3A

• Dimensions: 62.5mm x 185mm x 41.5mm

• Casing Material: Zinc Alloy (Metal Housing)

• Mounting Method: Wall-mounted

Easy Deployment with BioStar 2 and Third-Party Systems

The MA500 can work as a standalone terminal or be integrated into broader time attendance and access control platforms such as BioStar 2 or ZKTeco’s own ZKAccess software. This makes it flexible enough for both small deployments and large-scale enterprise integrations.

For environments where integration with third-party control panels is required, the MA500 supports standard Wiegand interfaces and flexible I/O configurations. These capabilities make it an ideal solution for systems that demand compliance with IT security policies, while still offering ease of use.

Why Buy the ZKTeco MA500 from Phonex Technologies Kenya?

At Phonex Technologies Kenya, we not only supply biometric systems but also provide unmatched after-sales support and deployment guidance. Here’s why you should get the MA500 from us:

• 100% Genuine Product Guarantee

• Expert Biometric Integration Support

• In-House Technical Setup Assistance

• Fast Delivery Within Kenya

• Competitive Pricing with Warranty Coverage

We work closely with system integrators, IT managers, and security consultants to provide fully configured solutions tailored to your organization’s specific requirements. With Phonex Technologies, you get more than a product—you get a long-term security partner.

Real-World Use Case Scenarios

Manufacturing Facility:
In a manufacturing plant with 24-hour operations, unauthorized access to machinery and production lines can lead to significant losses. By installing the MA500 at gate entry points and critical zones, only authorized personnel can access sensitive areas. The waterproof design ensures that dust and temperature variations don’t affect its performance.

Banking Institution:
For banks, access to server rooms and vaults must be strictly regulated. The MA500 provides a fingerprint + card verification method, ensuring dual-layer security. Log data is easily retrievable for audits, making compliance with internal policies effortless.

Educational Institution:
Universities and colleges often require restricted access to computer labs, staff rooms, and research centers. The MA500 enables precise tracking of entry logs, while the fingerprint system ensures that credentials cannot be shared or forged by students or staff.

Invest in Long-Term Security

https://www.phone-x.co.ke/product-category/security-and-cctvs/access-control/

The ZKTeco ZK MA500 is more than just an access terminal—it is a long-term investment in organizational security. Its biometric precision, rugged design, flexible deployment options, and integration capabilities make it a best-in-class solution for any facility aiming to strengthen access control.

Security, durability, and ease of integration come together in one device—the MA500. Available now at Phonex Technologies Kenya, your trusted source for biometric and IT infrastructure solutions.

Order Today and Secure Your Premises the Smart Way

For more details, pricing, or deployment inquiries, contact Phonex Technologies Kenya or visit our Nairobi store. We’re here to help you build a safer, smarter, and more secure tomorrow.
