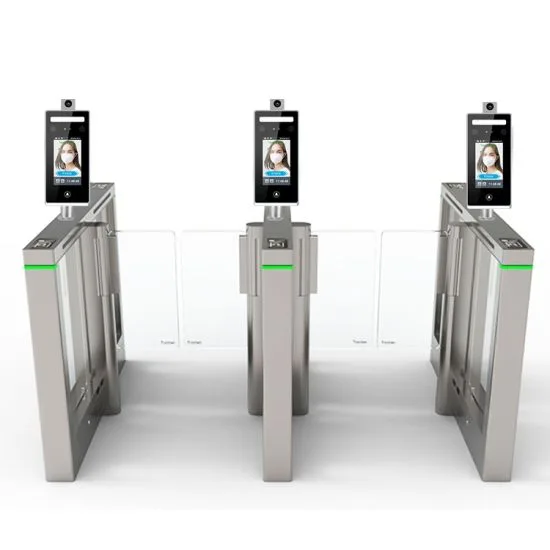

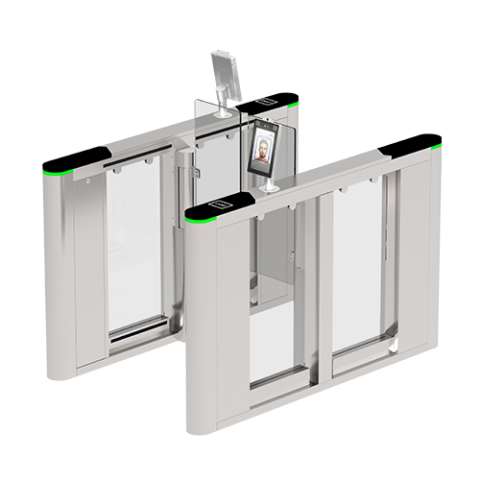

High-performance swing barrier for entry control that measures body temperature: SBTL8033

With SBTL8033, an indoor speed gate series for convenient contactless access control compatible with ProFace-X [TD] and SpeedFace-V5L [TD], which feature a modular reader panel design, you can safely screen workers or visitors wearing masks for high temperatures as they enter buildings or defined areas. An excellent option for retail, visitor management, and access control in business buildings.

Serious concerns regarding public health and personal cleanliness have been raised by the new coronavirus outbreak as the number of patients has been rising and the geographical dispersion has been expanding.

It has been demonstrated that hands are how most germs are transferred. Consequently, a touchless entry control system lowers the possibility of infection spreading across your facility.

Zkteco SBTL8033 Touchless Entrance Features Summary

• Fast and accurate visible light facial recognition with wide angle tolerance for masked individuals
• Body temperature detection
• Instant facial recognition in 0.3s
• Servomotor – faster gate opening speed
•10 pairs of infrared sensors for stronger tailgate detection
• SUS304 stainless casing
• Higher durability for longer product life cycle
• Bi-directional operation control
• LED passage indicator along the lane
• Convenient installation and maintenance
• Various optional panels
• Emergency mode allows free access in case of power failures or emergency

Zkteco SBTL8033 Specifications



Power Requirements	AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working Temperature	-28°C ~ 60°C
Working Humidity	20% – 95% (Non-condensing)
Working Environment	Indoor
Max. Speed of Throughput	40 people per minute
Lane Width (mm)	660
Dimensions (L*W*H)	1600 * 1040 * 1200 (mm)
Packing Dimensions (L*W*H)	1700 * 300 * 1130 (mm)
Net Weight (kg)	130kg
Weight with Packing (kg)	150kg
Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel & Acrylic
Barrier Material	Acrylic
Barrier Movement	Swing
Emergency Mode	Supported
Face Capacity	30,000 (1:N) / 50,000 (Optional)
Compatibility	900 MHz Dual Core Customized CPU
	512MB RAM / 8G Flash
	8″ High Brightness (400lux) IPS Touch LCD
	2MP WDR Low Light Camera
	IP68 & IK04
Dimensions of Facial Recognition Device (H*L*D)	227 * 143 * 26 (mm)
Facial Recognition Distance of Masked Individuals	3m
Temperature Deviation	+/- 0.5 degrees
Body Temperature Detection Distance	25cm – 50cm
Body Temperature Detection Speed	>0.3s
Temperature Selection Posture Angle Tolerance	+/-30 degrees
