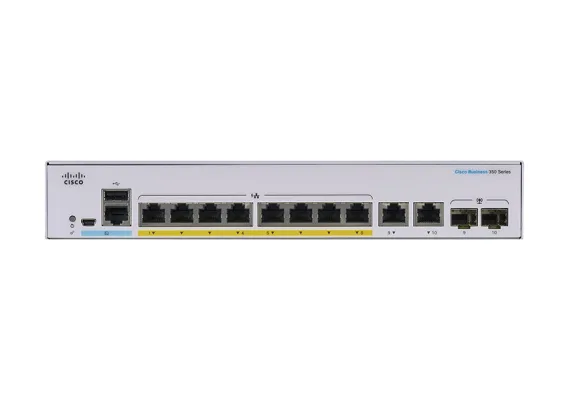

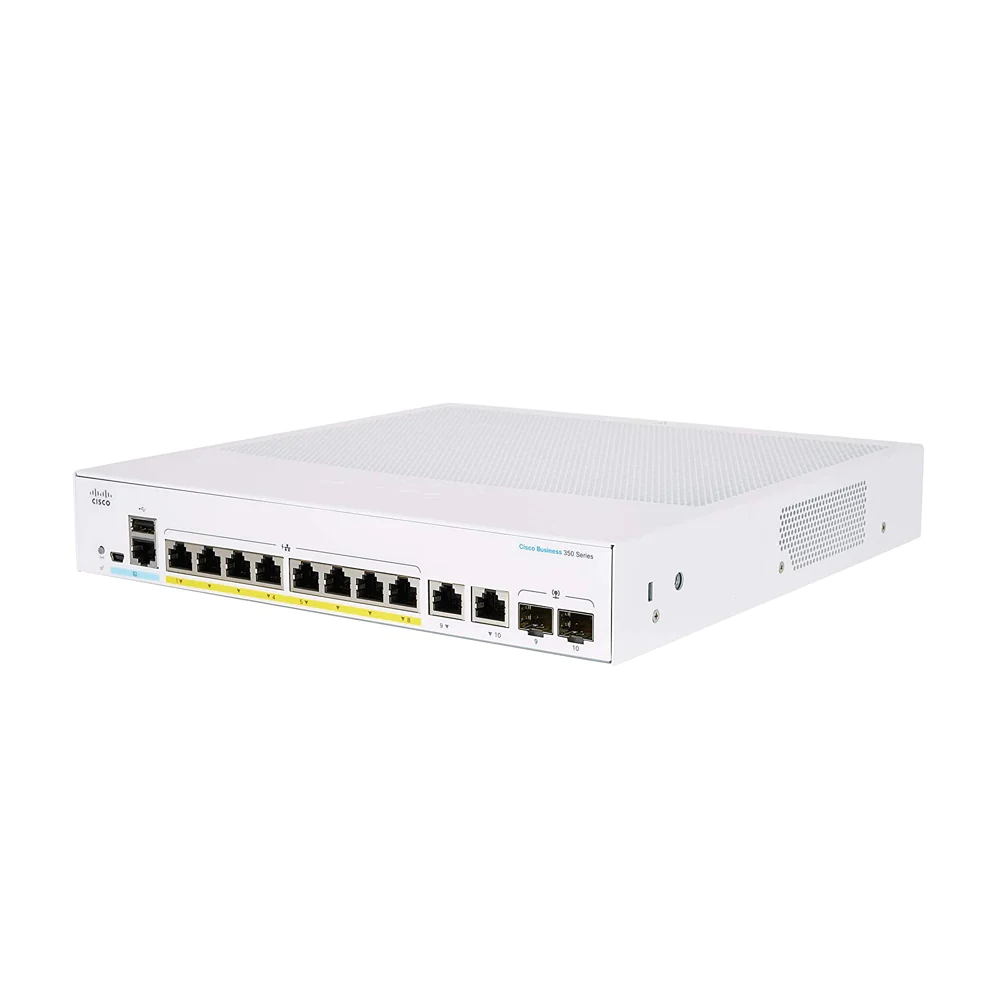

Cisco CBS350-8P-E-2G-UK 8-Ports POE Managed Switch
Cisco Business 350 Series Switches help you build a more productive, better-connected workforce by offering the perfect balance of price and features for small offices. A family of managed Ethernet switches with a fixed configuration is called the Cisco Business 350 Series Switches. With models including Gigabit Ethernet connection ranging from 8 to 48 ports and Gigabit or 10-Gigabit uplinks, users may create the ideal building block for small office networks with maximum flexibility.
Cisco CBS350-8P-E-2G-UK Features
CBS350-8P-E-2G Specification
CBS350-8P-E-2G Specification |
|
Feature | Description |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 14.88 |
Switching Capacity in Gigabits per Second (Gbps) | 20.0 |
Total System Ports | 10 x Gigabit Ethernet |
RJ-45 Ports | 8 x Gigabit Ethernet |
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 2 x Gigabit Ethernet combo |
Packet Buffer | 1.5 MB |
Unit dimensions (W x D x H) | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
Layer 3 | |
IPv4 routing | Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
IPv6 routing | Wirespeed routing of IPv6 packets |
Layer 3 Interface | Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
Classless Interdomain Routing (CIDR) | Support for classless interdomain routing |
RIP v2 | Support for Routing Information Protocol version 2 for dynamic routing |
Policy-Based Routing (PBR) | Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
DHCP Server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options |
DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
Quality of Service | |
Priority levels | 8 hardware queues |
Scheduling | Strict priority and Weighted Round-Robin (WRR) |
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
Congestion avoidance | A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
iSCSI traffic optimization | A mechanism for giving priority to iSCSI traffic over other types of traffic |
Green (power efficiency) | |
Energy Detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
EEE Compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
Disable port LEDs | LEDs can be manually turned off to save on energy |
Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) |
Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy |
General | |
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
MAC table | 16K addresses |
Hardware | |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Environmental | |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Warranty | Limited lifetime with next business day advance replacement (where available) |
Package Contents | |
● Cisco Business 350 Series Managed Switch
● Power Cord (Power adapter for select 8-port and 16-port SKUs) ● Mounting Kit ● Quick Start Guide |
|
Minimum Requirements | |
● Web browser: Chrome, Firefox, Edge, Safari
● Category 5e Ethernet network cable ● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed |
