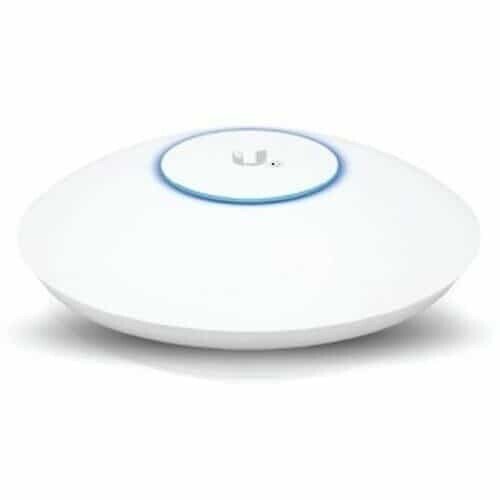

Ubiquiti Access Point UniFi AP-AC-PRO
The Ubiquiti Access Point UniFi AP-AC-PRO is an enterprise-grade, the high-performance wireless access point with a stylish design and a number of features to make managing and expanding your network simple. Up to 122 meters (400 feet) away.
The Ubiquiti Unifi AP-AC-PRO may broadcast its signal, providing enhanced multi-user capability for your Network Access Point from a greater distance. This Ubiquiti ac pro has two GbE RJ45 ports and one USB port. It may be powered via 802.3af PoE or 802.3at PoE+.
The UniFi Network web application or mobile app allows for quick and easy setup of the Ubiquiti access point and complete management of the device.
In comparison to the Unifi access points UAP-AC-LITE and UAP-AC-LR, the Unifi AP-AC-PRO is a higher version because it can be used both indoors and outdoors and because it has faster speeds.
Features of the Ubiquiti Access Point UniFi AP-AC-PRO
Dual-band 2×2 MIMO technology:
This allows the access point to operate on both the 2.4 GHz and 5 GHz frequency bands, providing a high level of flexibility and performance.
Gigabit Ethernet port:
The access point has a Gigabit Ethernet port, allowing you to connect it to your network at high speeds.
PoE support:
The access point can be powered using Power over Ethernet (PoE). This makes it easy to install in a variety of locations without the need for a separate power source.
Advanced security:
The access point supports advanced security features. They include WPA2-Enterprise and RADIUS authentication to help protect your network from unauthorized access.
Easy management:
The Ubiquiti Access Point UniFi AP-AC-PRO can be easily managed using the UniFi Controller software. This allows you to monitor and configure your access points from a single dashboard.
Overall, the strong and feature-rich Ubiquiti Access Point UniFi AP-AC-PRO is a wireless access point that is well-suited for business environments.
Ubiquiti Access Point UniFi AP-AC-PROSpecifications.
| Mechanical | |
| Dimensions | 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″) |
| Weight | Without Mounting Kit: 350 g (12.4 oz), With Mounting Kit: 450 g (15.9 oz) |
| Hardware | |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) 10/100/1000 Ethernet (1) USB 2.0 |
| Button | Reset |
| Antennas 2 GHz 5 GHz |
(3) Dual-Band Antennas 3 dBi 3 dBi |
| Max. TX Power | 22 dBm |
| Power Method | Passive PoE (48V), PoE+ Supported |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter (Included)* *5-packs do not come with PoE injectors. |
| Supported Voltage Range | 44 to 57VDC |
| Maximum Power Consumption | 9W |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to Four per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Power Save | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 125+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
UniFi AP AC Pro Video Review
Unifi Ap Ac Pro Software Overview.
Adopt the Ubiquiti Unifi AP AC Software Control Console and enjoy the following benefits:
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Ubiquiti Unifi AP AC Pro Support Center.
UniFi Access Point Frequently Asked Questions (FQAs)
Which UAP is right for me?
We provide many different UAPs, including the brand-new UniFi 6 versions. To find out more about the special features and uses of each gadget, watch our quick overview video.
How do I manage my UniFi Access Points (UAP)?
With your UniFi Network application running on a UniFi OS Console, APs may be handled locally or remotely. However, doing so will restrict your configuration and remote access possibilities. UAPs can also be configured as standalone devices.
By visiting unifi.ui.com or downloading the mobile app (Android or iOS), you can access your UAPs on the UniFi Network.
Support Documents Downloads and Links
